DC 100V Digital Voltmeter & Ammeter 50A (includes shunt)
DC 100V Digital Voltmeter & Ammeter 50A (includes shunt)
Regular price
£5.99 GBP
Regular price
Sale price
£5.99 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Features
- 100% brand new and high quality
- Made of high-quality materials, durable
- 10A, Voltmeter Ammeter LED Dual Digital

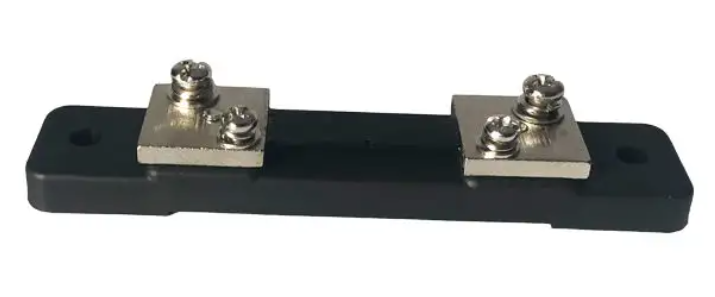

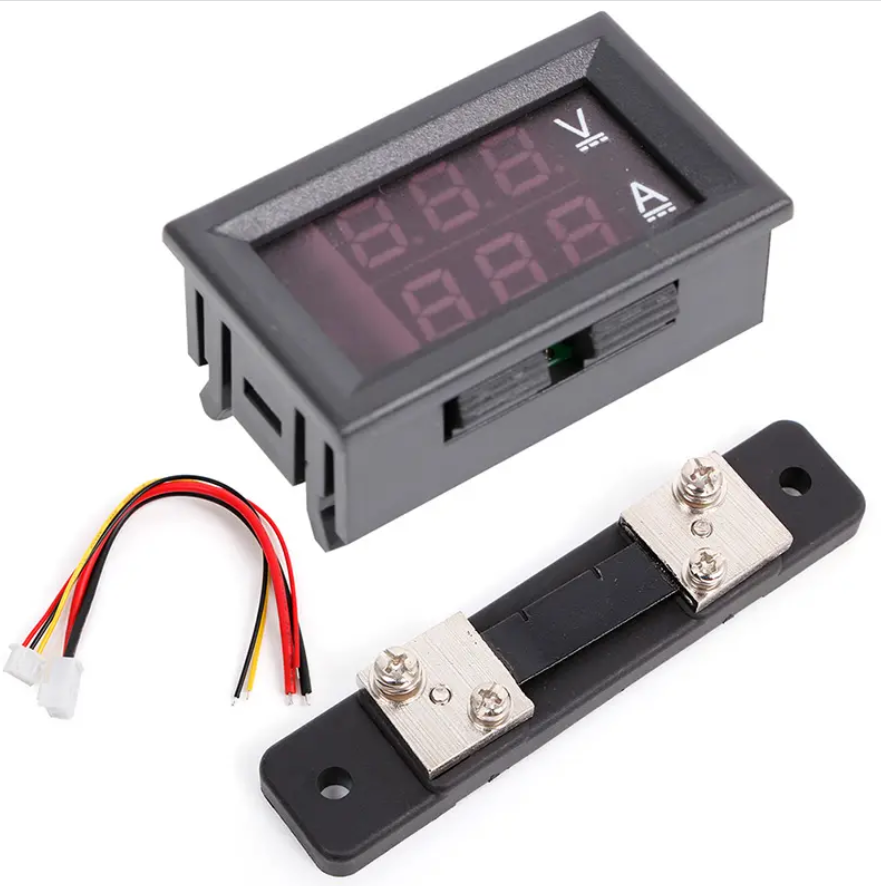

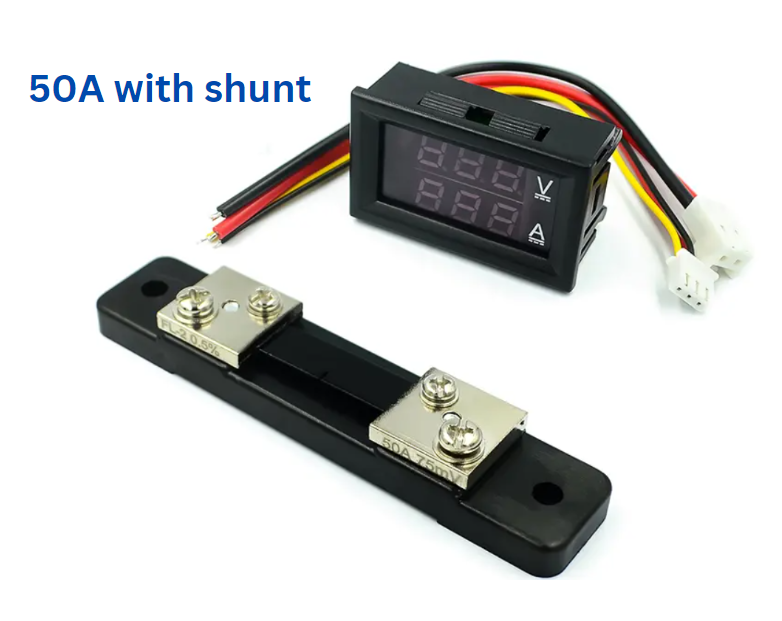

- The 50A has an external shunt as shown in images.
- 2 in 1 function Voltmeter Ammeter
- Power supply DC 4.5~30V range (Attention: The supply voltage cannot exceed 30V, or the unit will be destroyed)

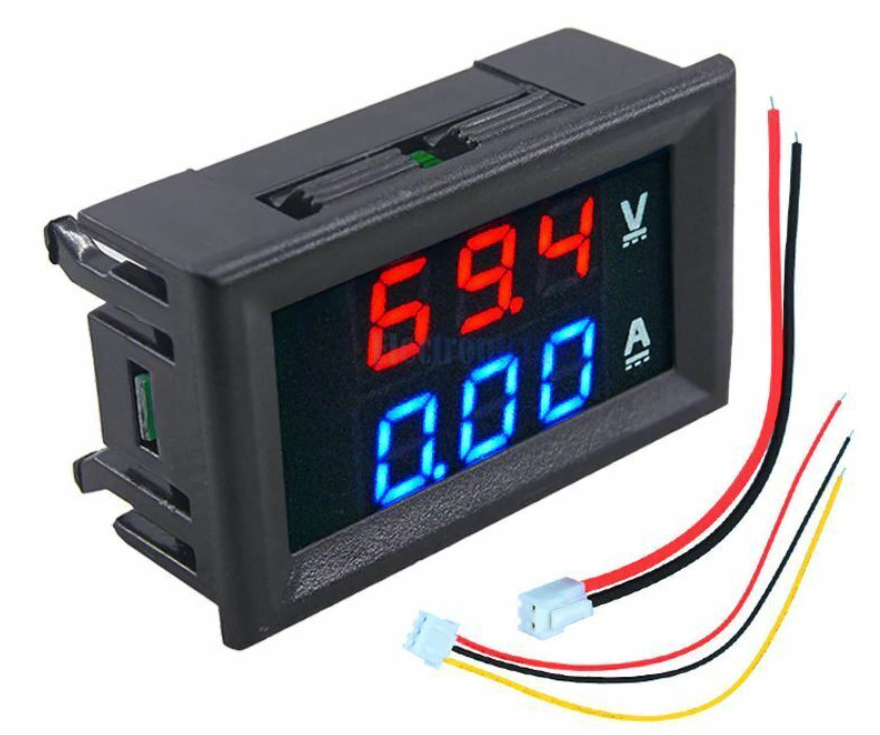

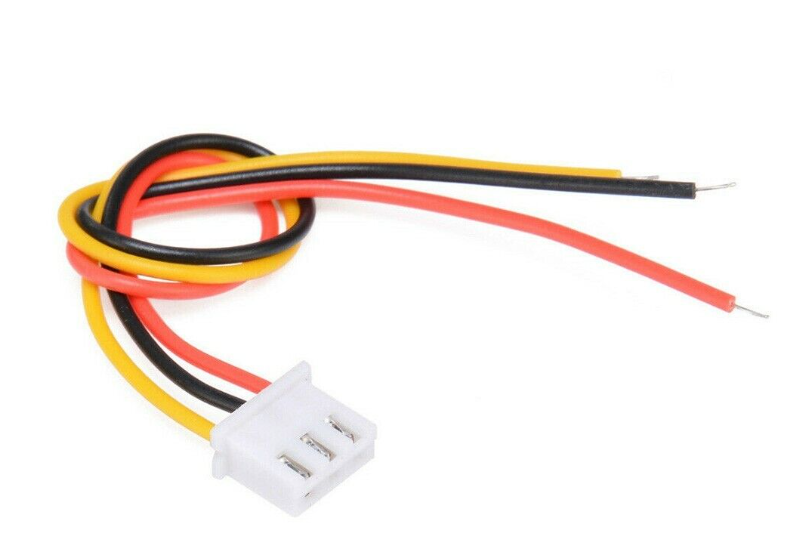

- This meter has three wires for easy connections to a car /battery car/ motorcycle car which can monitor the battery voltage status.
- Each item is sealed in anti-static packaging
Specifications
- Dual 0.28 " LED, display (Blue and Red)
- Power supply DC4.5V~30V
- Measuring range (V): DC 0V~100V
- Measuring range (A): DC 0A~50A / 100A
- Voltage resolution: 0.1V
- Current resolution: 0.1A
- Measurement rate: ≥ 300mS
- Measurement accuracy: 1% (± 1 digit)
- Operating Current <20mA
- Operating Temperature: -10℃ to +65℃
- Operating Humidity: 10 to 80% (non-condensing)
- Working pressure: 80 ~ 106kPa

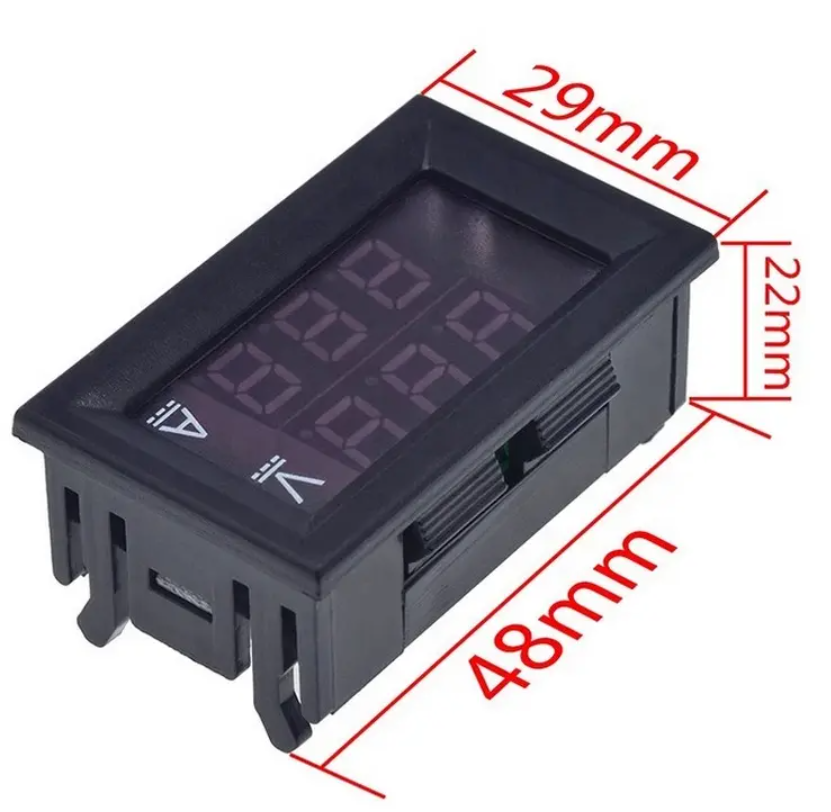

- Dimensions: approx. 48 × 29 × 22 mm
Note:
The maximum input voltage cannot exceed 30V. Otherwise, the meter will be burned.

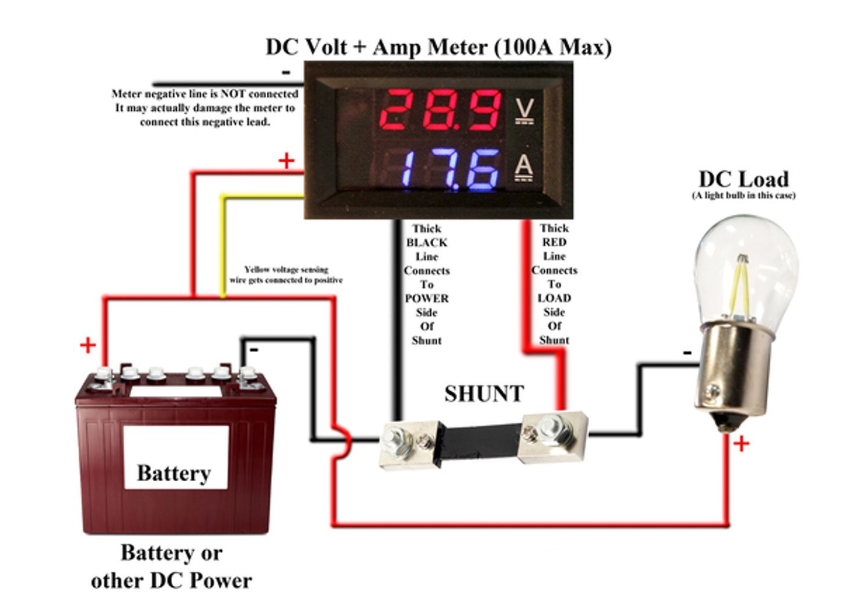

For meters with a range of 50A or 100A, no matter whether the measured current is less than 10A, a shunt must be connected to measure the current. Otherwise it will burn the header.
