Digital Dual Temperature & Humidity Controller XK-W1099

Digital Temperature Humidity Controller For Incubator Cooling Heating Switch Thermostat NTC Sensor 12V 24V 110-220V XK-W1099

The XK-W1099 temperature and humidity controller features an intelligent digital display that allows for easy monitoring and control. It provides real-time temperature and humidity readings, making it convenient and user-friendly. It's perfect for various household, institutional & industrial heating and cooling applications.

Wide Temperature Range: With a temperature measurement range of -0 to 100℃, this controller is suitable for various applications. It ensures accurate control with a control accuracy of 0.1℃, providing precise temperature regulation.

Dual-Purpose Control: This controller is designed for dual-purpose temperature and humidity control. It accurately measures humidity with a range of 0 to 100%RH, allowing for comprehensive environmental control.

High Load Capacity: The XK-W1099 has a high load power capacity of 120/240/2200w and an output capacity of 10A, allowing it to handle heavy loads without any issues. It provides direct output and ensures stable performance.

Compact : With a compact size of 100.8*54.9*31.2mm and a lightweight design of 91.5g, this controller is easy to install and carry. It features an ABS flame retardant plastic shell, ensuring durability and safety.

Features:
Be able to control temperature and humidity at the same time.

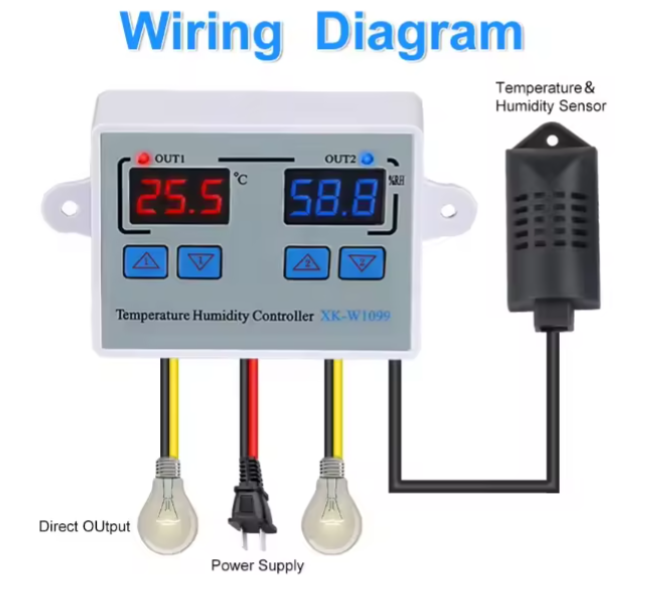

Be able to connect with humidifier and dehumidifier equipment at the same time.
Be able to connect with refrigeration/ heating and humidifier/dehumidifier equipment at the same time.
Heating/Cooling function could be set separately for refrigeration and heating to protect temperature controller from violent change. Same for humidity Control.
Supporting Temperature and Humidity Calibration

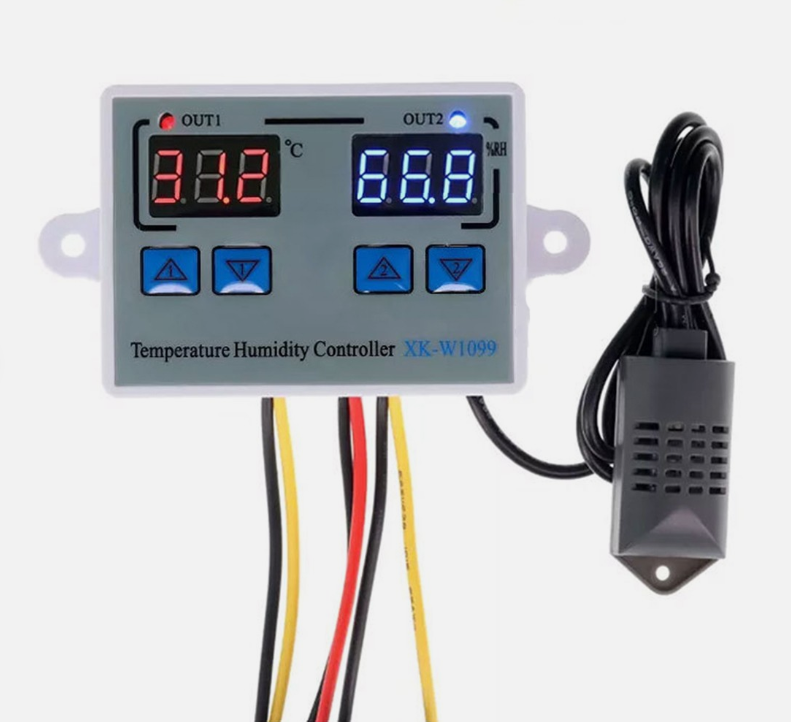

[Dual Display Window] Be able to display measured temperature/humidity and set temp/humidity at the same time

Specifications:
Display Type: Digital
Material: ABS+PCB

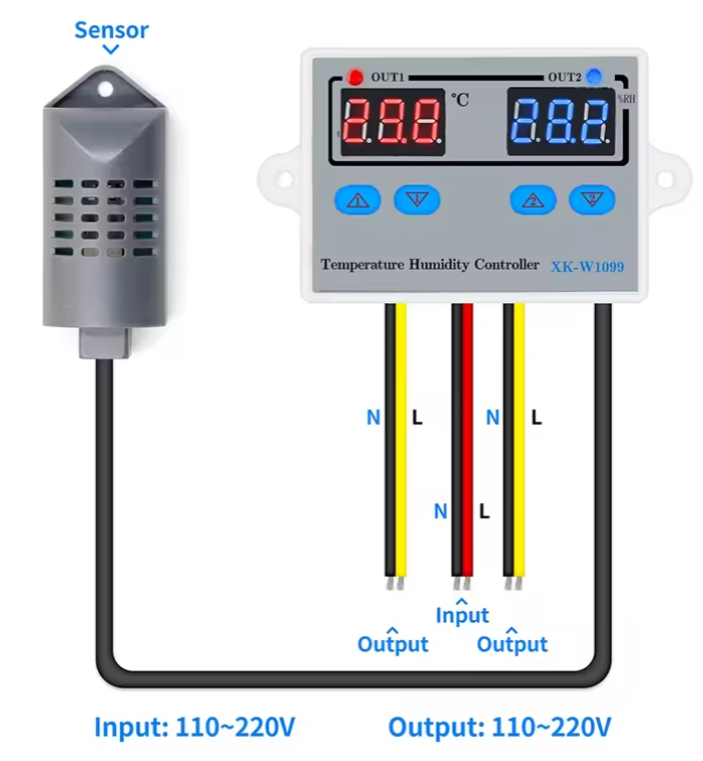

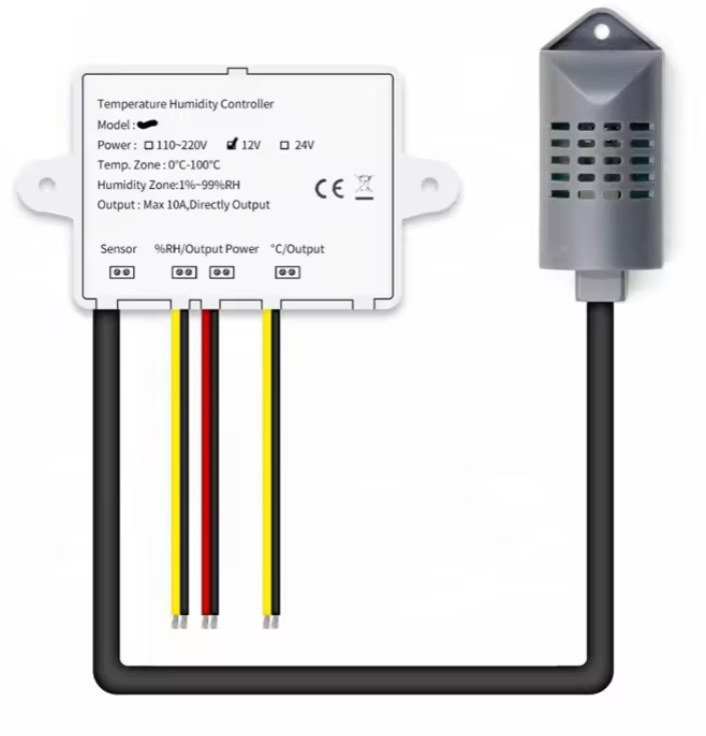

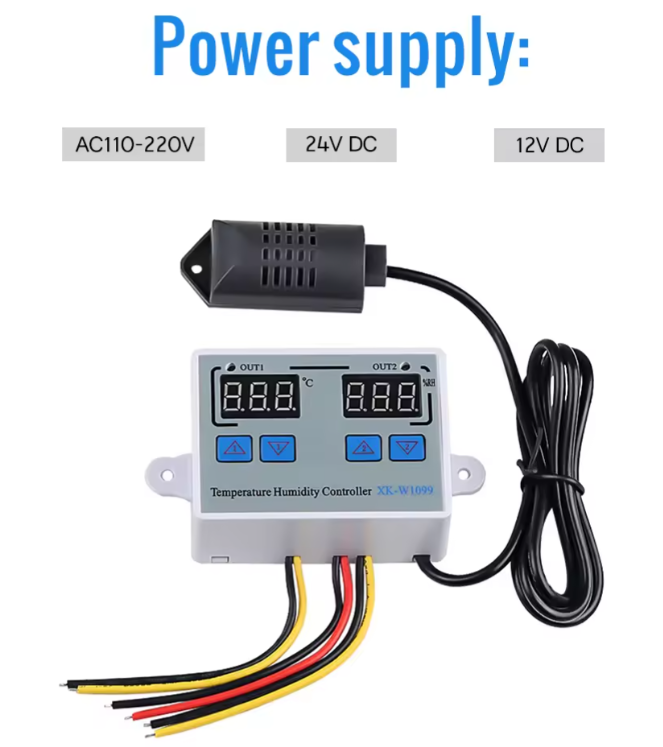

Input voltage: AC110~220V± 10%, DC24V, DC12V
Measuring temperature range: 0°C～+80°C
Measuring humidity range: 1%RH～+99%RH
Accuracy: ±1°, 0.1%RH
Relay output contact capacity: 10A Direct Output
Sensor length: 1m
Item Size: 7.5*5.5*3.1cm / 2.95*2.16*1.22in
Item Weight: 93g / 3.28oz

Instructions:
To set the star-tup temperature or humidity:
Press the "up" button once to display the starting temperature/humidity. Long press the "up" button for about 3 seconds, The required temperature/humidity can be set by the up and down keys.

To set the stop temperature or humidity:
Press the "down" button once to display the stop temperature/humidity. Long press the button for about 3 seconds and the stop temperature/humidity number flashes. The required temperature/humidity) can be set by the up and down keys

To adjust temperature or humidity:
Press "up" and "down button at the same time.

How to reset the product:
Press "down 1" and "down 2" for 3 seconds.

Package List:
1 * Temperature Humidity Controller
