STC-3008 Temperature Controller (dual NTC probes)

STC-3008 Temperature Controller (two probes)

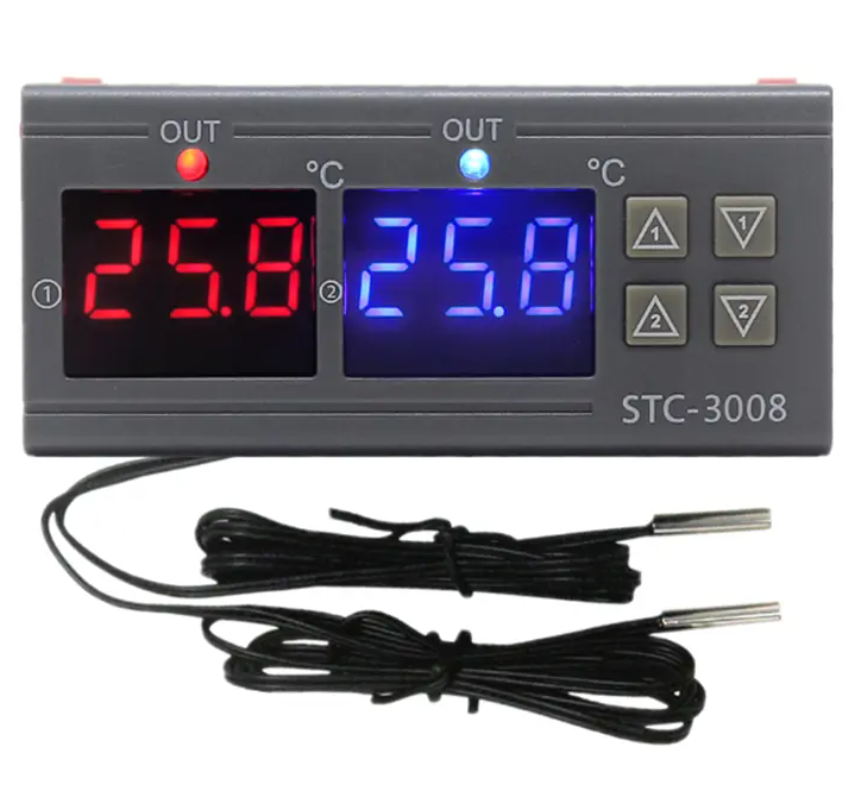

The STC-3008 temperature control and monitoring device integrates two single, independent temperature controllers in one unit: Red and Blue Display, Two Relays, Two Probes.

This Digital Temperature Controller sits within a ABS flame retardant plastic shell. It is equipped with 1 metre long NTC Sensors. The large and clear digital display shows high accuracy measuring temperature with 0.1°C step calibration.

The controller also includes added alarm function and relay delay in minutes. It's suitable for a range of applications such as in hatcheries, terrariums, refrigerators, incubators, brewing, compressors for controlling etc.

Features:

• Switch the modes between cool and heat;
• Control temperature by setting the temperature setting value and the difference value;
• Temperature calibration;
• Refrigerating control output delay protection;
• Alarm when temperature exceeds temperature limit or when sensor error.

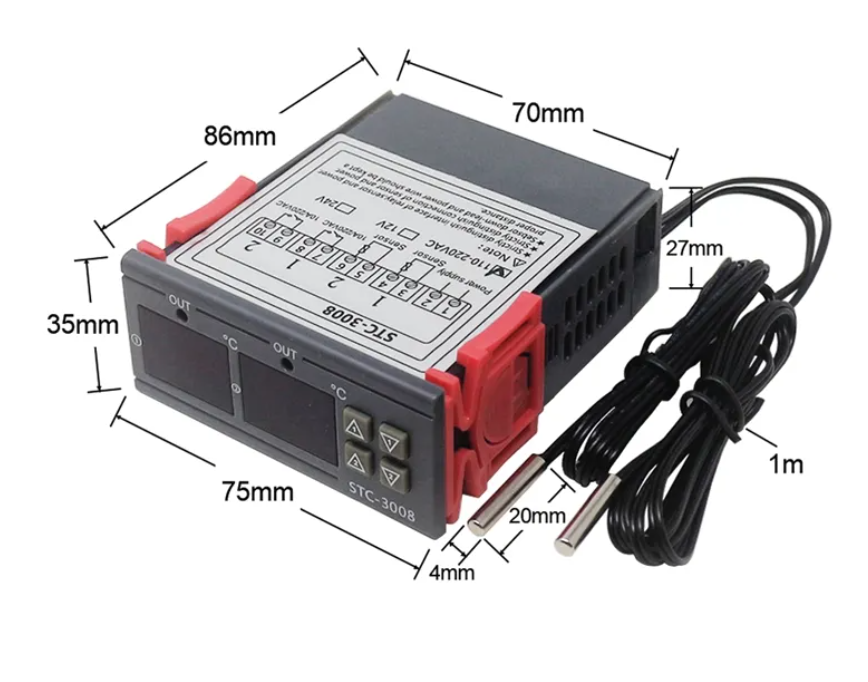

Dimensions:

• Front panel size: 75x34.5(mm)
• Mounting size: 71x29(mm)
• Product size: 75x34.5x85(mm)
• Sensor length: 1 meter (include the probe)

Specification:

• Temperature measuring range: -55-120 Celsius
• Accuracy: 0.1 Celsius
• Resolution: 0.1°C
• Sensor error delay: 1 minute
• Data save: yes
• Power supply: DC 12V DC 24V AC 110-220V
• Power consumption: <3w
• Sensor: NTC 10K 3435
• Relay contact capacity: Cool (10A/240VAC); Heat (10A/240VAC)
• Ambient temperature: 0-60°C
• Relative humidity: 20% ~ 85% (No condensate)
• Storage temperature: -30°C ~ 75°C

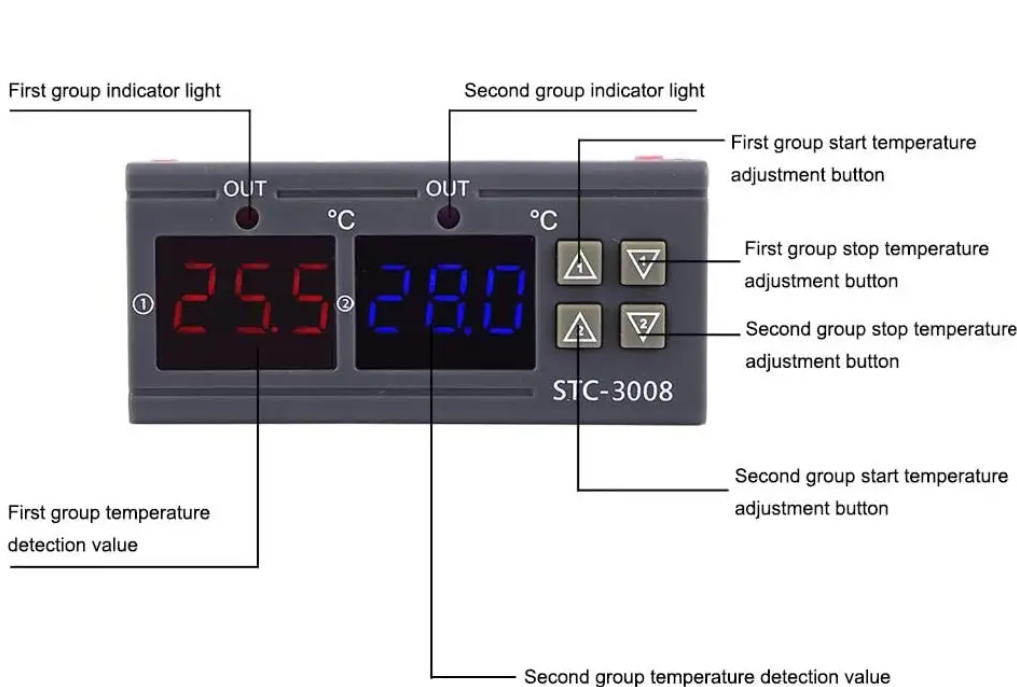

Instructions:

Set start up temperature:

Press the "up" button once to display the starting temperature. Long press the "up" button for about 3 seconds,The required temperature can be set by the up and down keys

Set the stop temperature:

Press the button once to display the stop temperature. Long press the button for about 3 seconds and the stop temperature number flashes. The required temperature can be set by the up and down keys

Press "Up 1" Button & "Up 2"Button at the same time to setting mode

How to restore factory Settings:

Press the "Down 1" and "Down 2" button at the same time,  the factory setting is restored

Package contents:

• 1X Dual digital Temperature Controller
• 2X Waterproof NTC Sensors
