STC-3028 Dual Temperature Humidity Controller

STC-3038 High Quality Digital Smart Multi Thermostat Temperature Controller

Features:

• Dual Control: This temperature and humidity controller can control temperature and humidity at the same time, and can be connected with a cooling or heating device and humidifier or dehumidifier at the same time.
• Easy to Connect and Program: Connect this temperature and humidity controller and the device to the power supply, then you can program by simply setting the start temperature/stop temperature and start humidity/stop humidity to control the device work.
• High Precision: This thermostat humidistat controller is equipped with a high-precision temperature and humidity sensor, delivering accurate and stable performance. Accuracy: ±1℃/±0.1%RH.The temperature/humidity can also be calibrated if required.
• Lightweight: Made in ABS material for safer use, this temperature and humidity controller is small and lightweight.
• Applications: The thermostat can be used for household water heaters, freezers, refrigerators, aquariums, brewed beer, chicken incubators, breeding, planting, etc. It is also suitable for laboratory use and other temperature control systems.

Specifications:

• Product Model: STC-3028
• Optional Voltage: 12V/24V/110V - 220VAC
• Screen Display: Dual Screen Dual Display
• Measurement temperature range: -20°C ~ +80°C
• Measuring humidity range: 00%RH~+100%RH
• Ambient Temperature: 0~60°C
• Accuracy: ±1°C 0.1%RH
• Relay output contact capacity: 10A
• Machine Power Consumption: Less Than 3W
• Relative Humidity: 0%~100% (no condensation)
• Integrated sensor, line length 1 meter

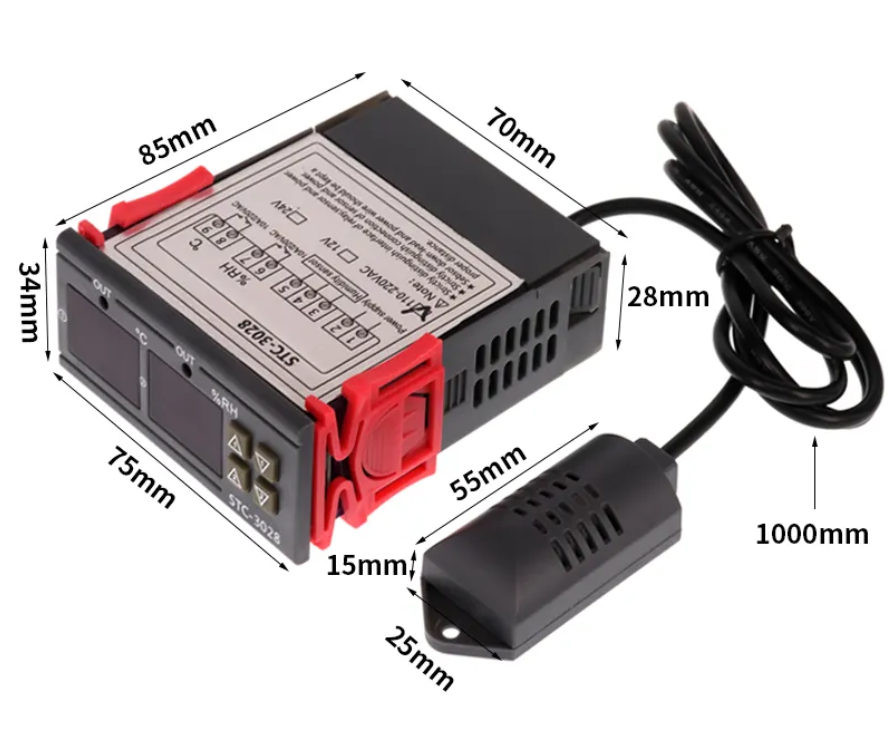

• Machine Size: Approx. 75 x 34.5 x 85mm / 3 x 1.4 x 3.3in
• Installation Opening: Approx. 71 x 29mm / 2.8 x 1.1in
• Shell material: gray ABS flame retardant plastic shell
• Net weight 120g Gross weight 140g

Package Included:

• 1PC x Temperature Controller

Instructions:

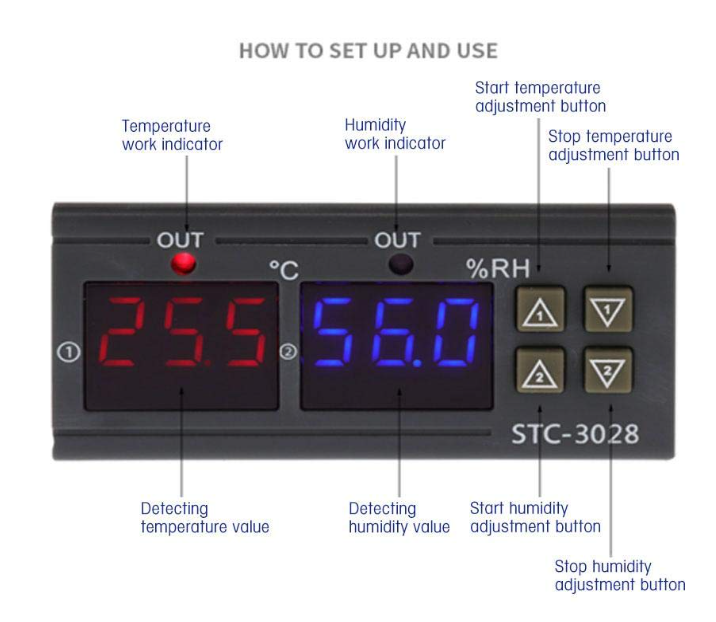

Buttons marked ‘1’ control the red temperature display. Buttons marked ‘2’ control the blue humidity display.

Set start-up temperature/humidity:

Press the "up" button once to display the starting temperature/humidity. Long press the "up" button for about 3 seconds, The required temperature/humidity can be set by the up and down keys.

Set the stop temperature(humidity):
Press the "down" button once to display the stop temperature/humidity. Long press the button for about 3 seconds and the stop temperature/humidity number flashes. The required temperature/humidity can be set by the up and down keys.

By simultaneously pressing the up and down (No. 1) buttons you access the temperature calibration setting (default 0.0°C). You can make the desired temperature correction by adjusting the flashing value by 0.1, using (UP) and (DOWN) arrows.

By simultaneously pressing the up and down (No. 2) buttons you access the relative humidity calibration setting (default 0.0% RH). You can make the desired humidity correction by adjusting the flashing value by 0.1, using (UP) and (DOWN) arrows.

To restore to factory settings, press both down buttons together for 3s.
