XH-W3005 Humidity Controller
XH-W3005 Humidity Controller
XH-W3005 Humidity Controller
This reliable, easy-to-use use and compact humidity controller allows you to control humidity in a range of settings such as mushroom growing, hydroponics, incubation, agriculture, brewing etc.
Options include either DC 12V, DC 24V or AC110-220V so you can choose voltage according to the purpose.

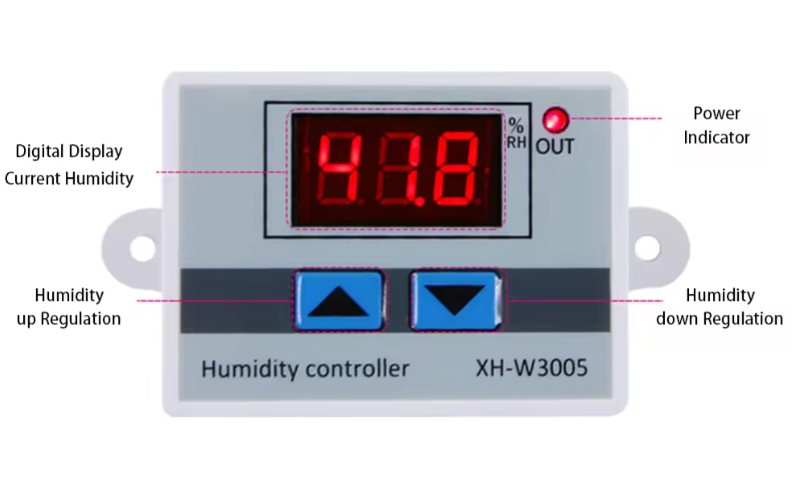

Easy to operate: Equipped with two buttons "UP and DOWN", it is easy to set and operate (see instructions below).
High accuracy: High measurement accuracy up to 0.1% RH, clearly shown on the display screen, for you to read data easily. This is a high-quality hygrometer controller, durable in use.
Wide measuring range: This digital humidity controller has a humidity measuring range of 0~99%RH. The wide measuring range can allow you to use this humidity sensor in many situations.
Specifications
Model: XH-W3005
Weight: 68g/2.4oz
Input voltage: 12V, 24V, 220V (optional)
Humidity range: 00%~99%RH
Humidity control accuracy: 0.1%RH
Load power: 120W/240W/1500W
Output type: direct output

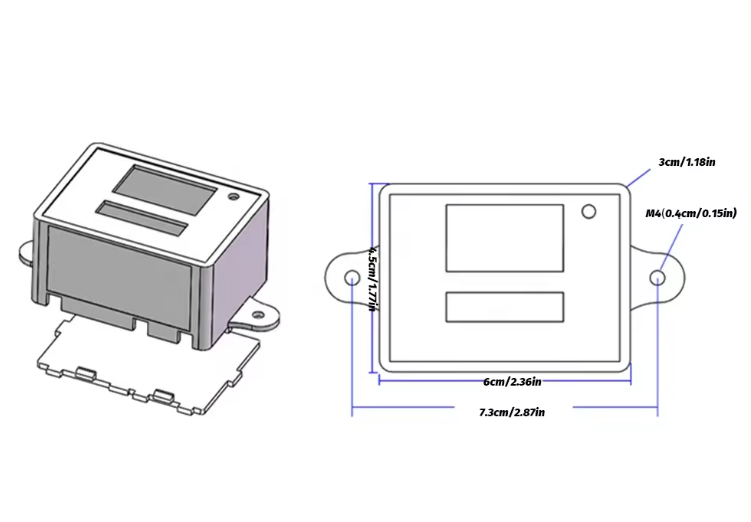

Installation hole distance: 73mm/2.9inch

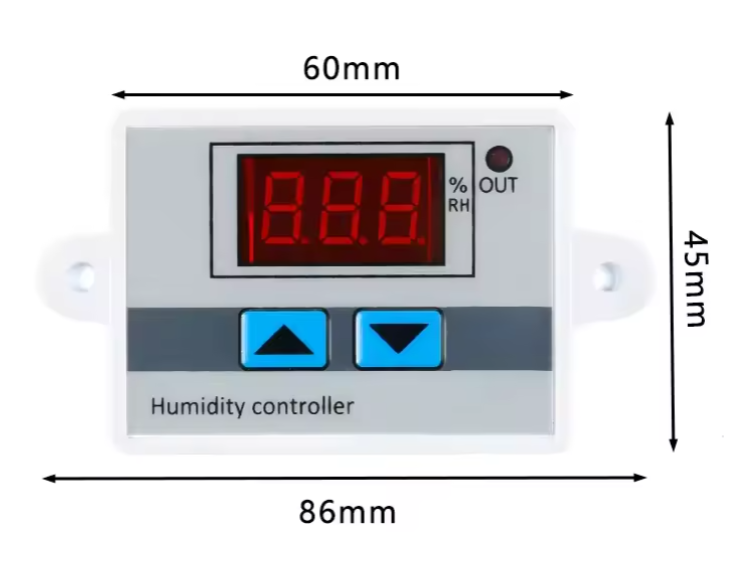

Size: 60*45*31 mm/2.4*1.8*1.2 inches
Instructions:
Connect the power, display the humidity indicator
Set the initial humidity: Press the UP key to display the initial humidity, press and hold for about 3 seconds to start the humidity flashing, and then press UP or DOWN to adjust the setting.
Set the humidity stop: Press the down key to display the humidity stop, press and hold for about 3 seconds to stop the humidity flashing, and then press UP or DOWN to adjust the setting.
Restore factory settings: Press UP and DOWN at the same time, display 888, and automatically detect humidity.
Note: W3005 is a direct output, so please do not power on if the output end is not connected properly or not connected, in case that the two-stage contact spark and careless touch of the wire cause unnecessary trouble.
