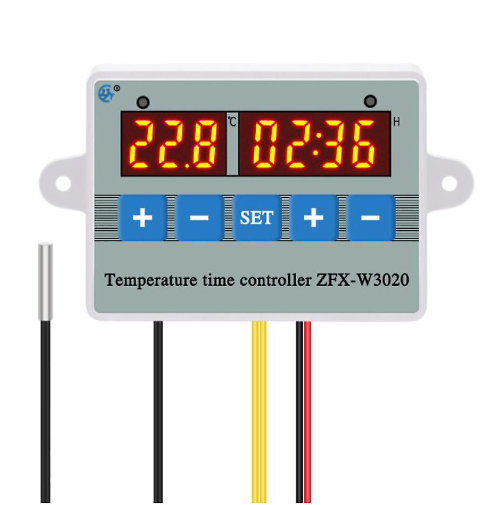

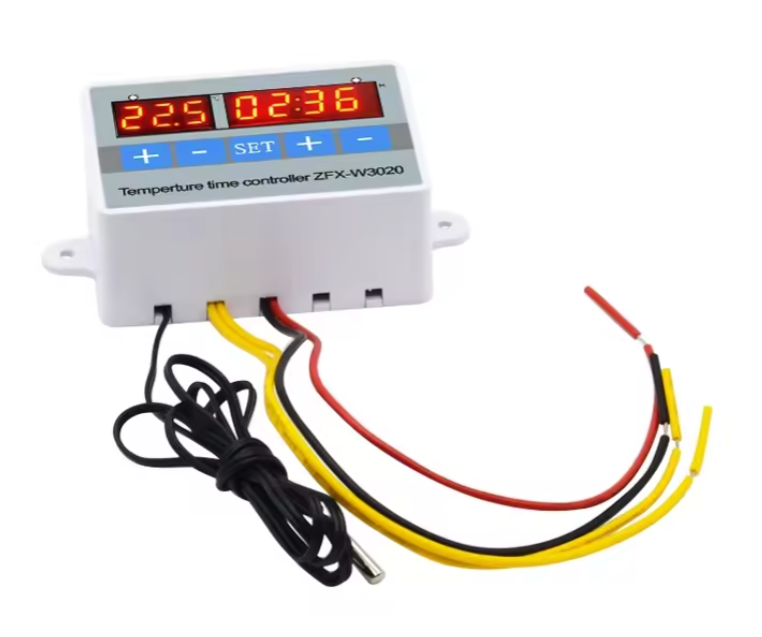

ZFX-W3020 Temperature controller with Timer
ZFX-W3020 Temperature controller with Timer
Couldn't load pickup availability
Accurate temperature control: The ZFX-W3020 digital thermostat controller provides precise temperature regulation with a 0.1-degree resolution, ensuring optimal performance in industrial, outdoor, and indoor settings.
Wide voltage compatibility: This temperature controller is designed to work with 220V, 12V, and 24V power sources, offering versatile installation options for various applications.
Advanced time switch sensor: Equipped with a timer and temperature controller, the ZFX-W3020 can be programmed to automatically switch on and off, ensuring energy efficiency and preventing over-heating.

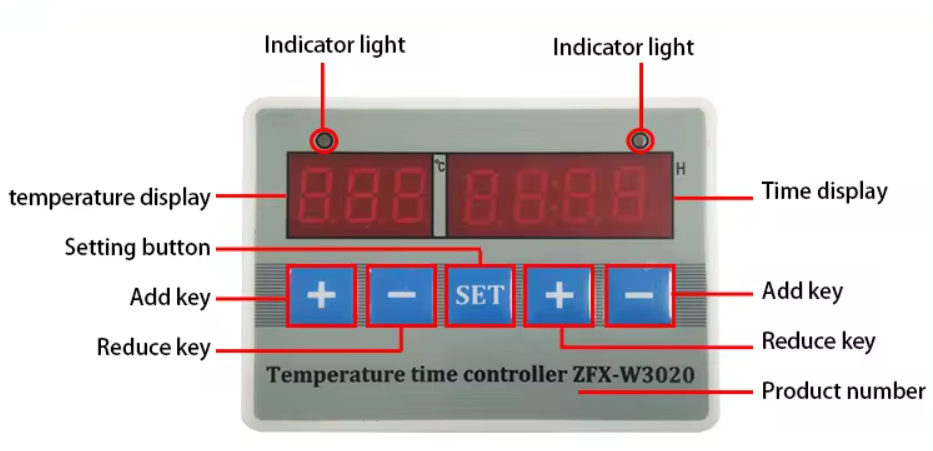

Durable and user-friendly design: The ZFX-W3020 thermostat controller features a digital display, making it easy to set and monitor temperatures. Constructed with plastic material, it is both durable and lightweight.
Trusted brand quality: ZFX-W3020 digital thermostat controllers are manufactured by reputable brands, ensuring reliable performance and durability in your application.
Features:
- High precision and very durable for long-term use.

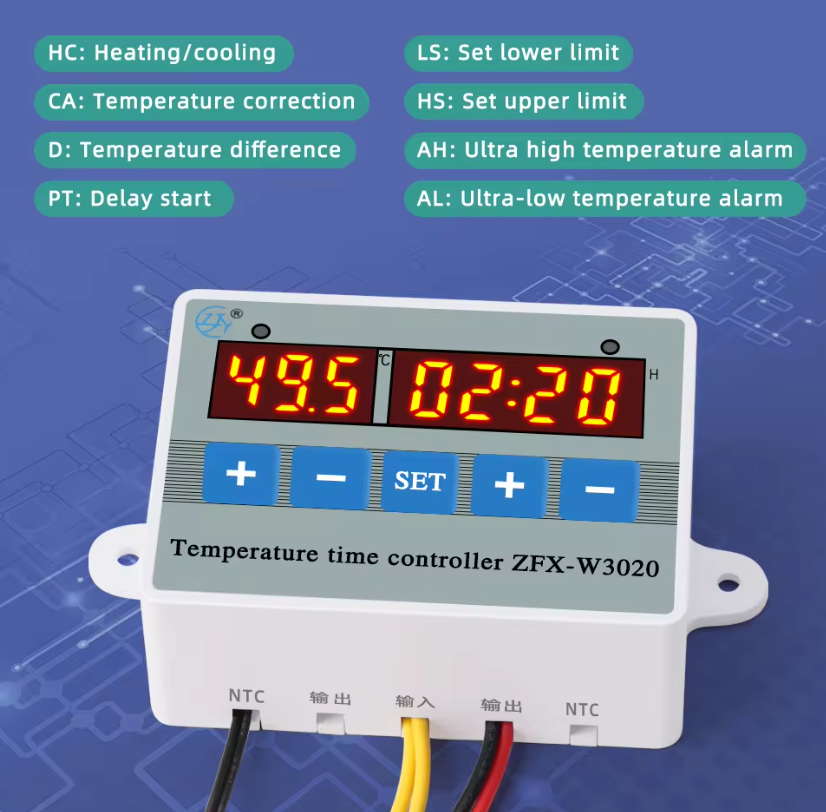

- Temperature setting with upper and lower limits.
- Easy to operation: Temperature and time control mode only need switched by a press of a button.
- Can be installed directly or embedded in industrial control equipment panel, quick and convenient to set up.

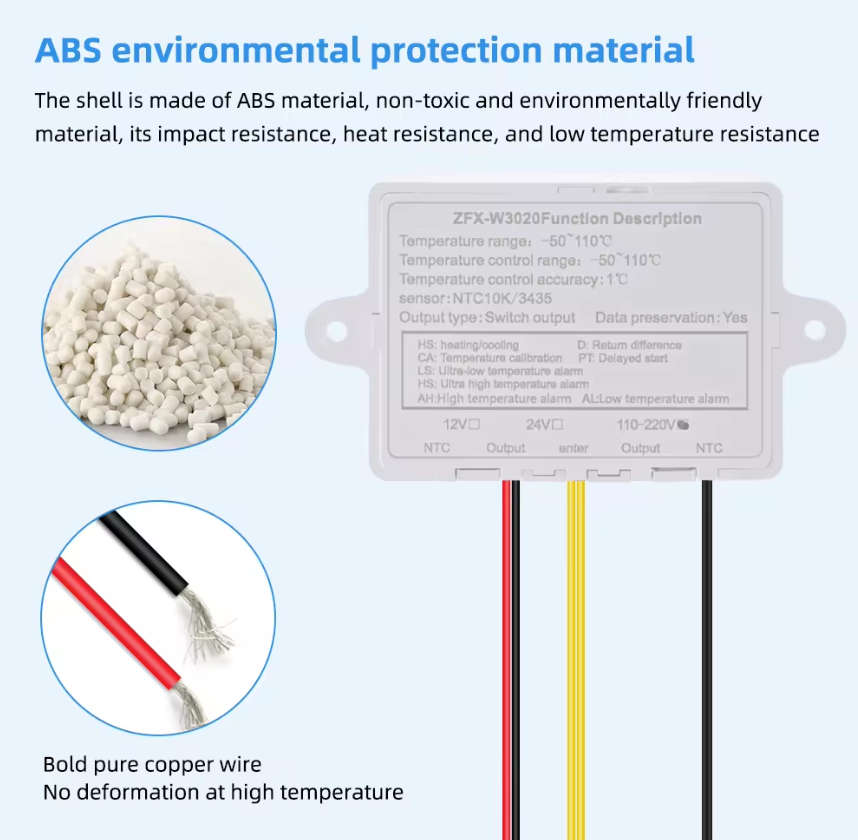

- ABS flame retardant with long service life and will not discolour or be out of shape.
Specifications:

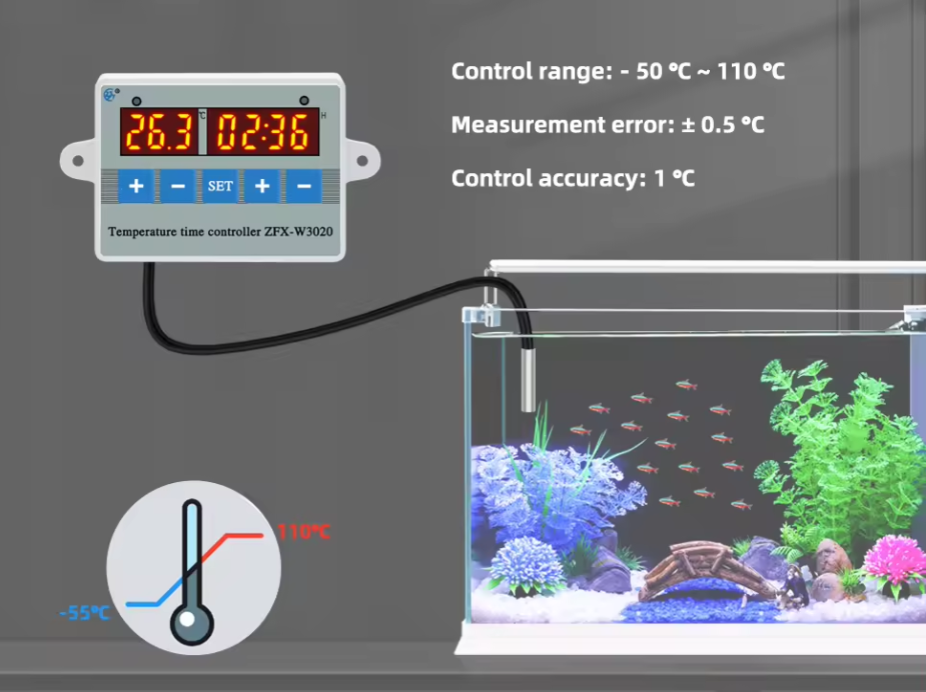

Temperature range: -55~110℃
Temperature measurement accuracy: 1℃
Temperature control error: ±0.5℃

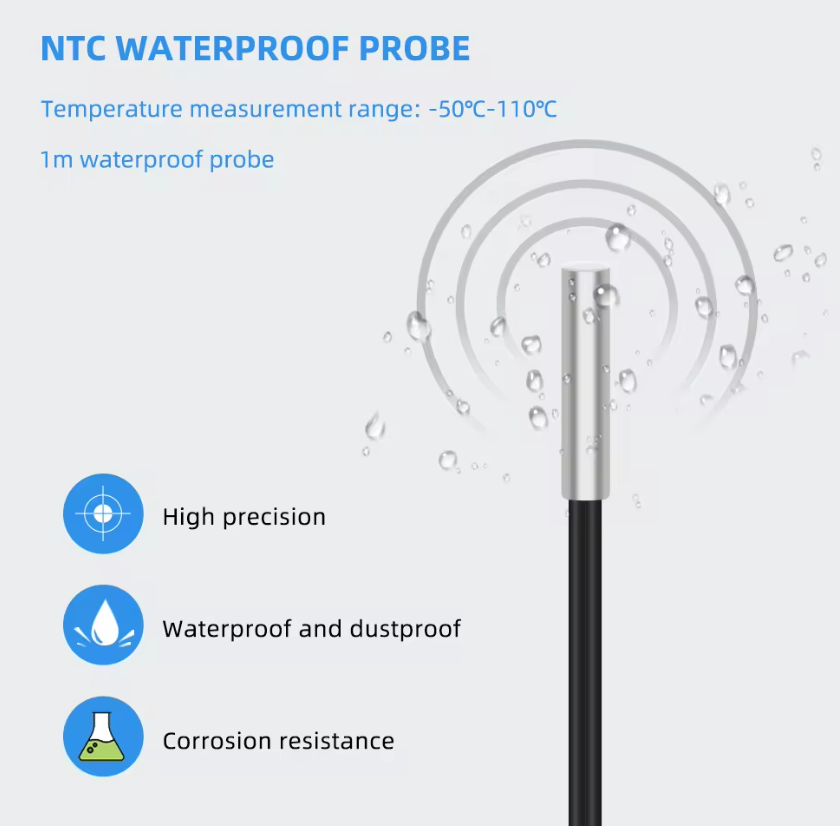

Temperature measuring probe: NTC10K/B3435 L=1m
Working current: MAX200mA
Output type: switch output
Data storage: Yes

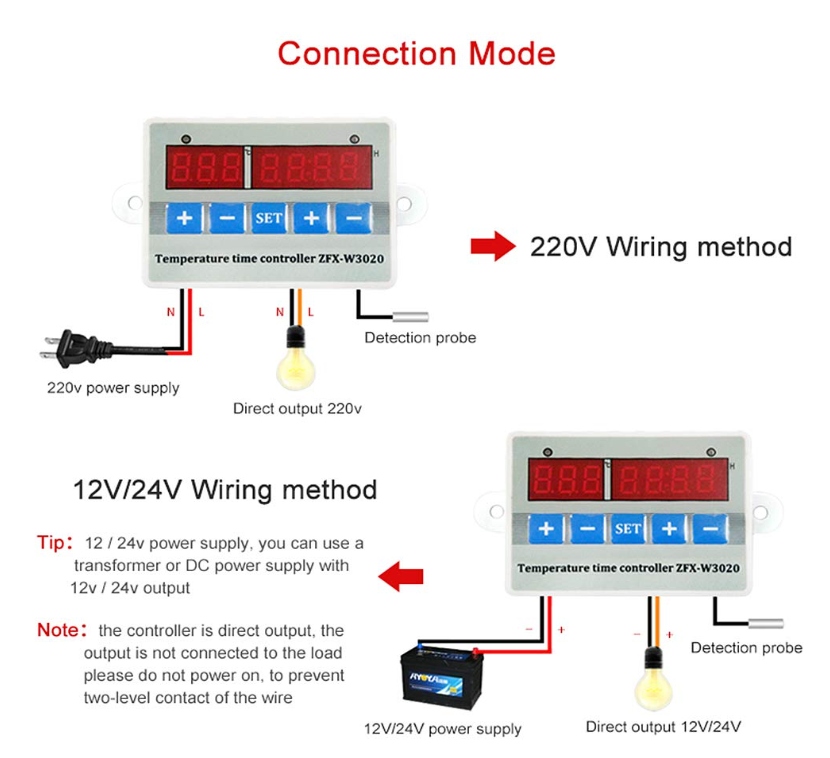

Power supply: DC12V/24V/110-220V (Choose)
Material: ABS & electronic elements
Color: white & gray

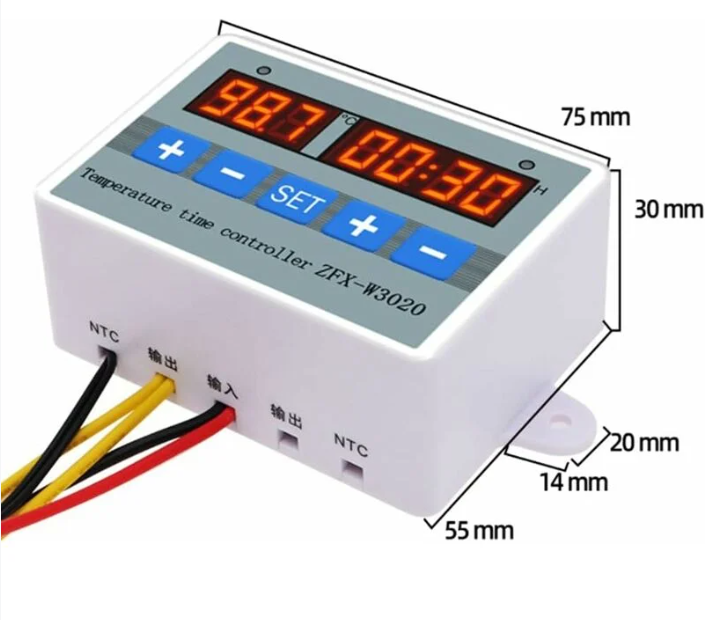

Size: 76*55*31mm
